Generating Cloud Optimized GeoTIFFs and Raster Tiles with GDAL

TLDR: gdalbuildvrt, gdal_translate, gdal_warp and gdaladdo

The following outlines the basic steps for generating Cloud Optimized GeoTIFFs and raster tiles from one or more raw TIFF files.

Create the Mosaic

GDAL Build VRT Reference

Separate the bands and add an alpha band that gdal can use.

gdalbuildvrt mosaic.vrt -b 1 -b 2 -b 3 -addalpha //path/to/tif/files/*.tif

Update 3/22/2022 - If you run into the error “gdalbuildvrt does not support heterogeneous projection” you can warp all the source TIFF files into the desired projection, then run the command above, using the warped vrt files as the source files. See this Stack Exchange post

for %%i IN ("\\192.168.168.23\2009_Orthos\*.tif") do (
gdalwarp -of VRT -dstalpha -t_srs "EPSG:3735" %%i %%i_nad83.vrt
)
gdalbuildvrt mosaic.vrt -b 1 -b 2 -b 3 -addalpha //path/to/tif/files/*_nad83.tif

Create the Desktop Cloud Optimized GeoTIFF

GDAL Translate Reference

COG Driver Reference

Force the NAD83 projection using either EPSG:6551 (NAD83 2011) or 3735.

Update 2/10/2022 - For Desktop GIS usage, higher clarity may be found by using the NEAREST resampling method at the expense of pixelation. When using this method, set the resampling to bilinear or cubic in the GIS software when adding the COG.

gdal_translate mosaic.vrt cog.tif ^
-a_srs EPSG:6551 ^
-of COG -co RESAMPLING=AVERAGE -co NUM_THREADS=ALL_CPUS -co COMPRESS=JPEG ^
-co BIGTIFF=YES -co QUALITY=85 -co PREDICTOR=YES -co LEVEL=9 -co OVERVIEW_QUALITY=95 ^
--config GDAL_CACHEMAX 9999 ^
--config GDAL_NUM_THREADS ALL_CPUS

Create a Mosaic in WebMercator from the Original Mosaic

Use the ITRF00 transformation suitable for both 6551 and 3735.

gdalwarp mosaic.vrt web.vrt ^
-t_srs EPSG:3857 ^
-s_srs "+proj=lcc +lat_0=38 +lon_0=-82.5 +lat_1=40.0333333333333 +lat_2=38.7333333333333 +x_0=600000 +y_0=0 +ellps=GRS80 +towgs84=-0.9956,1.9013,0.5215,0.025915,0.009246,0.011599,-0.00062 +units=us-ft +no_defs" ^
-dstalpha ^
-et 0 ^
-r lanczos ^
-of VRT ^
-overwrite

Create the COG in WebMercator for use in a COG Server

GDAL Warp Reference

If you want to use the COG in ArcGIS Server then use JPEG compression.

Using the default resampling works fine as does AVERAGE, BILINEAR and CUBIC (default).

Update 2/10/2022 - Using AVERAGE may provide more clarity for the overviews.

gdal_translate web.vrt cog_web.tif ^
-of COG ^
-co TILING_SCHEME=GoogleMapsCompatible ^
-co NUM_THREADS=ALL_CPUS ^
-co BIGTIFF=yes ^
-co BLOCKSIZE=256 ^
-co COMPRESS=WEBP ^
-co RESAMPLING=AVERAGE ^
-co QUALITY=65 ^
-co OVERVIEWS=IGNORE_EXISTING ^
-co OVERVIEW_COMPRESS=WEBP ^
-co SPARSE_OK=TRUE ^
--config GDAL_CACHEMAX 9999 ^
--config GDAL_NUM_THREADS ALL_CPUS

Check your COG with the coggeotiff cli tool

cogeotiff --info -f cog_web.tif -t

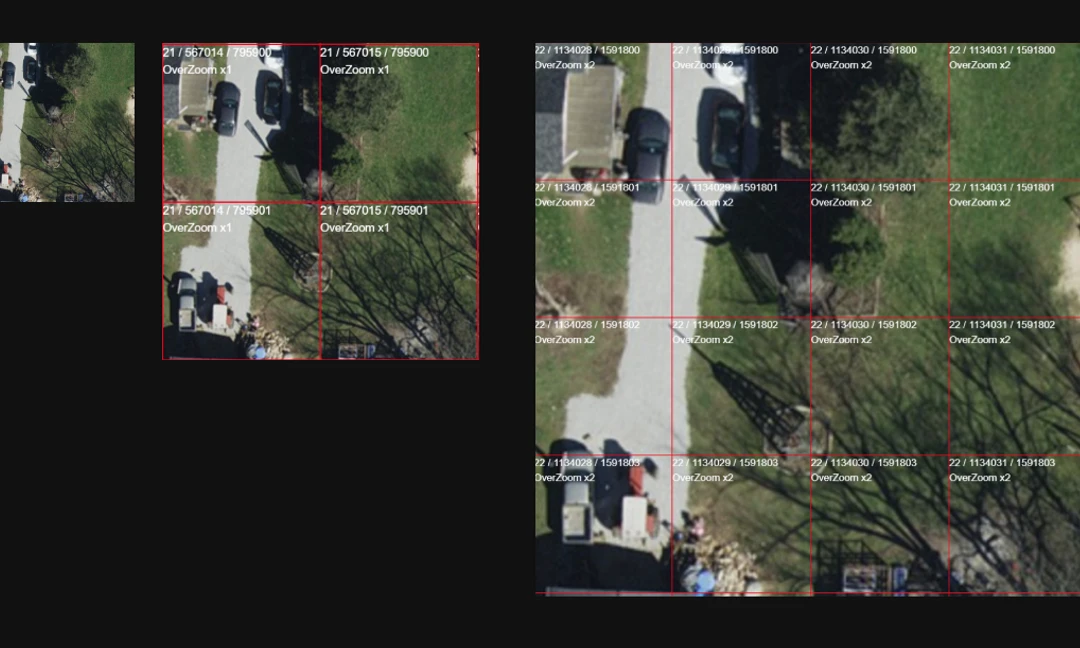

Generate Tiles with gdal_translate and gdaladdo

GDAL Translate Reference

GDAL MBTiles Driver Reference

Use this method to output mbtiles instead of a COG for serving raster tiles.

gdal_translate -of MBTILES ^
--config GDAL_NUM_THREADS ALL_CPUS ^
-co ZOOM_LEVEL_STRATEGY=LOWER ^
-co RESAMPLING=CUBIC ^
-co TILE_FORMAT=PNG ^
web.vrt tiles.mbtiles
gdaladdo tiles.mbtiles -r average 2 4 8 16 32 64 128 256

Other Methods

These methods create satisfactory outputs and can be faster, but can cause projection shifts. These may still be satisfactory for imagery where precise accuracy is not as important. In addition, the QGIS tool exports the rendered map, not just the raster, allowing for the creation of tiled custom basemaps.

python.exe scripts/gdal2tiles.py -xyz -z 0-18 input/cog.tif output/tiles

Resources

@basemaps cog server

cogeotiff cli tool

https://alastaira.wordpress.com/2011/07/11/maptiler-gdal2tiles-and-raster-resampling/

https://gitlab.com/GitLabRGI/geopackage-python/blob/master/Packaging/tiles2gpkg_parallel.py

https://gitlab.com/GitLabRGI/geopackage-python/blob/master/Tiling/gdal2tiles_parallel.py
